Emulator 'Lapdog' P-90 Pickup
Neck / Soapbar / Cream
$190.00 USD
Emulator 'Lapdog' P-90 Pickup
$190.00 USD
Shipping calculated at checkout.
Inspired by a combination of rare pickup designs from the late 1940s, the Emulator ‘Lapdog’ brings together vintage lap steel character and that early "dog ear" P-90 growl. It's magnet slug pole pieces and vintage output deliver a sweet, bell-like voice with the clarity of early amplified guitar tones.
The Lapdog is intentionally not wax potted, keeping it's construction in step with it's vintage-inspired roots. It offers this distinctive voice in either mounting style.
A matched Lapdog neck-and-bridge pair offers hum-cancelling operation when both pickups are selected together.
Specifications
| Specification | Neck | Bridge |
|---|---|---|
| DC resistance | 7.4 kΩ | 7.8 kΩ |
| Pole spacing | 50 mm (≈ 1-31/32″) | 50 mm (≈ 1-31/32″) |
| Magnet type | AlNiCo II (2) | AlNiCo II (2) |
| Relative tonal profile | ||
| Relative output |
Measurements are approximate. Inch (fractional) measurements are rounded to the nearest 1/64.

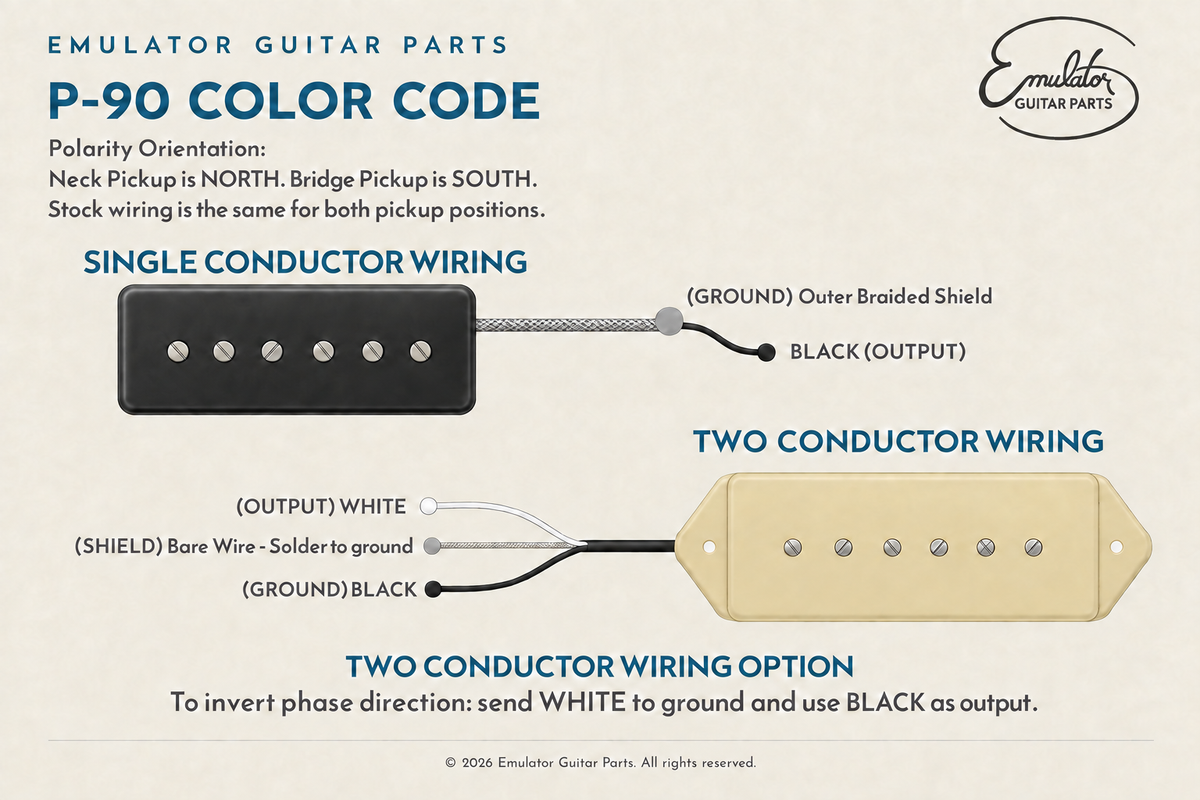

Wiring: Single conductor; braided shield
Wax-potted: No
Included hardware:
- Pickup adjustment screws/mounting screws, springs, and foam.
Please note that all electric guitar pickups are within ±10% tolerance of listed direct current resistance (DCR). DCR is subject to changes in temperature and readings may be impacted. Measurement is also dependent on equipment accuracy.
